Z series single RF module

Atzgb-780z01-pa medium power module

　　Atzgb-780z01-pa series single RF front-end module is an ultra compact, low-power, high-sensitivity independent RF OEM module that meets IEEE 802.15.4/zigbee specification.

　　The atzgb-780z01-pa series module integrates PA and LNA, greatly improving the link index.

　　Based on the latest ATMEL's mixed signal hardware platform, the main chip of the module is at86rf212b. They are specially designed for wireless sensor, control and data acquisition applications, with wide wireless rate range (20kbps ~ 1Mbps) and multi-band support (779mhz ~ 936mhz).

　　The use of atzgb-780z01-pa module provides SPI interface, without expensive and time-consuming RF development, greatly reducing the time to market of wireless products.


产品详情

Product characteristics

Application fields:

It is completely defined by users, and yuntianchuang provides comprehensive driver layer support and network layer support.

The drive platform provides:

ATMEL: AVR / samd20 / xmega series

ST: STM32 \ stm8 series

G igaDevice:GD32F103 Series m3 core

Freescale: kl14 series M0 + kernel

STC: 51 series single chip microcomputer

• ultra compact size (29.4x16mm)

High RX Sensitivity (- 126dB)

Link loss budget (151db)

Up to + 25dbm output power

SPI interface

Adjustable wireless rate

• true random number generation for self-contained safety applications

Hardware sending and receiving indication function

• built in antenna diversity function based on MAC Protocol

• built in AES 128 bit hardware accelerator (ECB and CBC modes)

• FCS calculation and check

Self contained empty channel detection

Signal strength indication, energy detection and link quality indication

• built in MAC protocol hardware accelerator (automatic confirmation and retransmission, CSMA-CA and LBT protocol, automatic frame filtering)

It meets the requirements of IEEE 802.15.4-2003, ieee802.15.4-2006, IEEE p802.15.4c/d6, ETSI en 300 220-1 and FCC 47 CFR section 15.247


Detailed specification

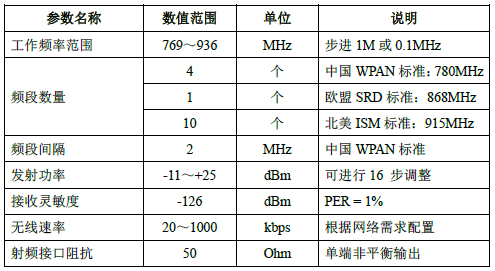

RF index

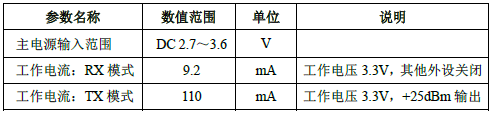

Working power indicator





Pin description of stamp hole module

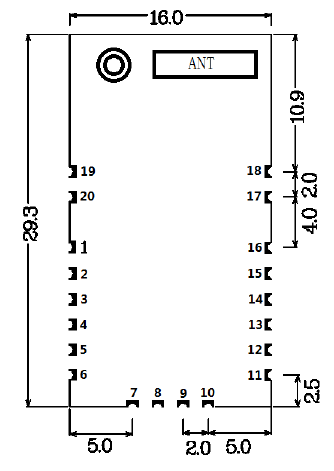

Outline dimension drawing of module

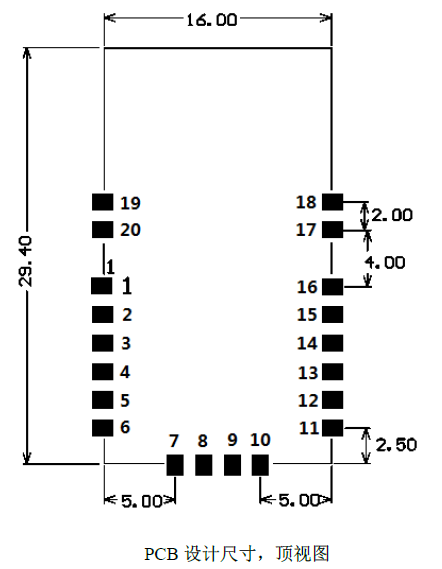

PCB package dimension drawing





ordering information

Atzgb-780z01-pa-p: 780mhz module with UF. L antenna connector, in-line package
Atzgb-780z01-pa-s: 780mhz module with UF. L antenna connector, stamp hole patch package
