Atzgb-z01 series single RF modules are ultra compact, low power consumption and high sensitivity independent RF OEM modules conforming to IEEE 802.15.4/zigbee specification.
Based on the latest ATMEL mixed signal hardware platform, the main chip is at86rf212b. They are designed for wireless sensor, control and data acquisition applications, with wide wireless rate range (20kbps ~ 1Mbps), and multi band support (779mhz ~ 936mhz).
Atzgb-z01 module provides SPI interface, which greatly reduces the time to market of wireless products without expensive and time-consuming RF development.
Product characteristics
Application fields:
It is completely defined by users, and yuntianchuang provides comprehensive driver layer support and network layer support.
The drive platform provides:
ATMEL: AVR / samd20 / xmega series
ST: STM32 \ stm8 series
G igaDevice:GD32F103 Series m3 core
Freescale: kl14 series M0 + kernel
STC: 51 series single chip microcomputer
· ultra compact size (22.7x16mm)
High RX Sensitivity
Link loss budget (120dB)
• up to + 10dBm output
• ultra low power consumption
SPI interface
Adjustable wireless rate
· true random number generation for self-contained safety applications
Hardware sending and receiving indication function
• built in antenna diversity function based on MAC Protocol
• built in AES 128 bit hardware accelerator (ECB and CBC modes)
• FCS calculation and check
Self contained empty channel detection
Signal strength indication, energy detection and link quality indication
• built in MAC protocol hardware accelerator (automatic confirmation and retransmission, CSMA-CA and LBT protocol, automatic frame filtering)
It meets the requirements of IEEE 802.15.4-2003, ieee802.15.4-2006, IEEE p802.15.4c/d6, ETSI en 300 220-1 and FCC 47 CFR section 15.247
Detailed specification
RF index

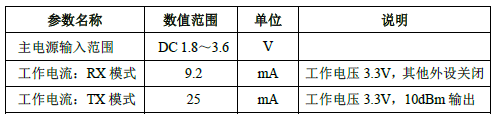

Working power indicator
Function table of stamp hole module pin

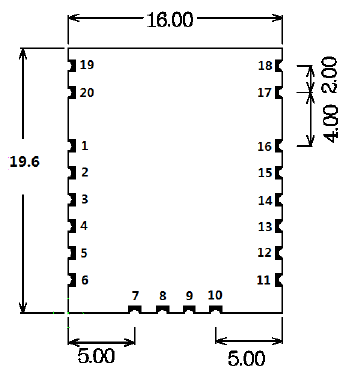

Outline dimension and pin drawing
Top view

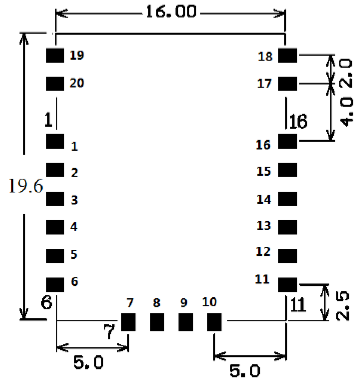

PCB installation dimension
Top view
Communication distance test
Weather: fine
Wind force: Level 3
Transmitting power: 10dBm
Modulation mode: BPSK, speed 20kbps
ordering information
Atzgb-780z01-ufl-s: 780mhz module with UF. L antenna connector, stamp hole patch package
Atzgb-2400z01-ufl-s: 2.4GHz module with UF. L antenna connector, stamp hole patch package
