wireless adapter

Wireless USB adapter

　　Zgb-link-usb configurator is a kind of wireless ZigBee adapter with USB interface specially designed for upper computer and field data acquisition. It adopts ST company's 32-bit m3 processor and rf86 Series RF scheme, which enables users to expand the communication function of ZigBee / 802.15.4 Wireless network efficiently and quickly through the USB host interface of PC or embedded host.
　　Zgb-link-usb series ZigBee USB dongle inherits the advantages of USB interface hot plug and port direct power supply on the hardware interface; on the wireless interface, it not only has point-to-point, point-to-point transparent data transmission, but also supports the star, tree and mesh honeycomb network transmission of ZigBee wireless network, which can meet the networking needs of different fields and occasions.


产品详情

Product characteristics

main features

High receiving sensitivity (- 110 DBM)

Up to + 10 DBM wireless output power

USB2.0 interface, supporting hot plug and port power supply

Online configuration function, support sleep power saving mode

Support 128 bit AES wireless data encryption

Support firmware program online upgrade

Compatible with IEEE 802.15.4/zigbee protocol

2.4 GHz ISM and 780m WPAN

Operating system support: Windows98 Se / 2000 / XP / Vista, MAC OS-9, MAC OS-X, Linux 2.40

Size (mm) 80.0 (L) x 32 (W) x 12 (d)

advantage

The communication distance of the built-in antenna with 2dBI can reach 50-150m outdoor visible distance

Easy firmware upgrade

Ultra low power combination, USB suspend support

Ultra small physical size, easy to use

Support point-to-point, star network, tree network and mesh network

Multiple operating system support

Typical applications include: (as collector node or configurator)

Smart home

Secure transmission

Hydrological monitoring

Industrial field monitoring and transmission

Status and performance monitoring transmission of mechanical equipment

Automatic meter reading

Greenhouse monitoring transmission

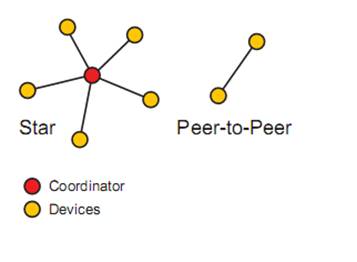

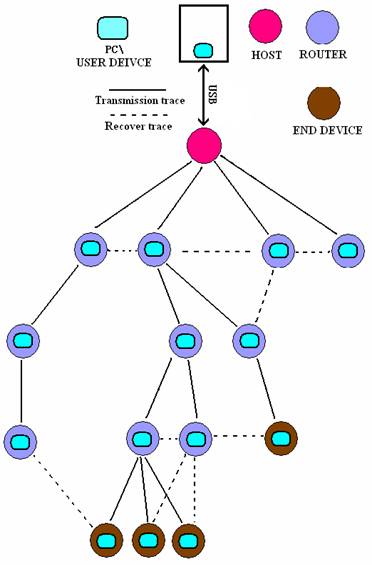

Network topology


下载 (1).png




Detailed specifications

parameter

Range

Company

RF output power

-17~+3

dBm

RF receiver sensitivity

-101

dBm

Wireless rate

250~2000

kbps

Radio frequency band

2.4~2.48

GHz

RF transmitting power (max)

20(RF)+26(USB-Bridge)

mA

Open communication distance

Up to 300

m

Dimensions

70.0*23*9

mm

Operating temperature range

-30~85

℃

Interface type

USB 2.0, USB-A


ordering information


Equipment name

explain

ZGB-LINK-USB2400

The standard USB2.0 interface supports point-to-point / point to multipoint.

ZGB-LINK-USB780

The standard USB2.0 interface supports point-to-point / point to multipoint.
